R33B | Mitsubishi MELSEC iQ-R Series Main Base Unit — 3-Slot Backplane / Surface Mounting / PLC Rack

R33B Main Base Unit — The Backplane for Compact MELSEC iQ-R Systems

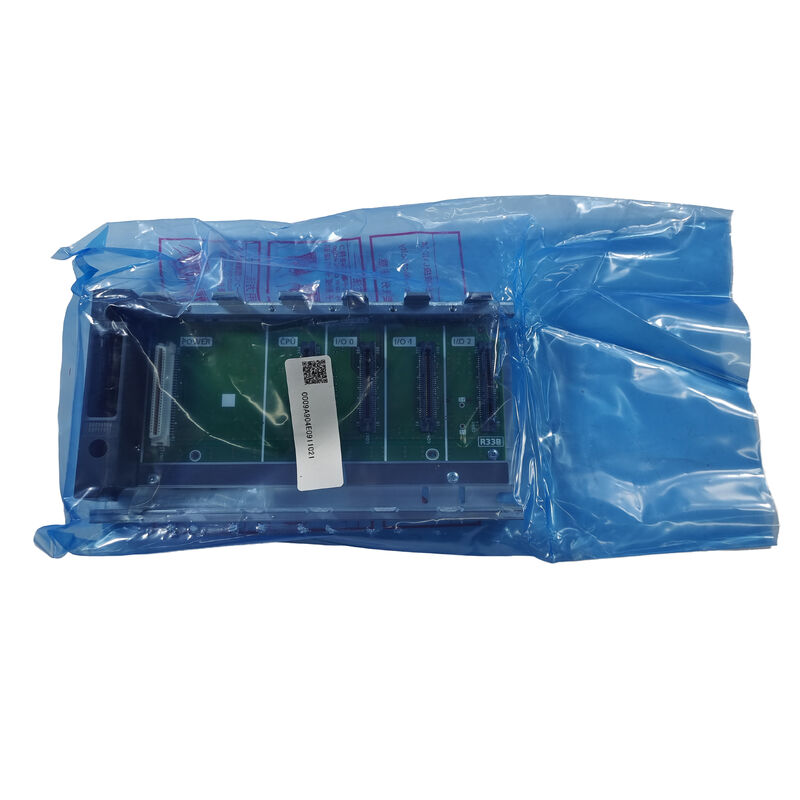

The R33B is Mitsubishi Electric's 3-slot main base unit for the MELSEC iQ-R series PLC platform — the backplane chassis that physically houses and interconnects the CPU module, power supply module, and I/O or function modules in a compact controller configuration. As a "main base unit," the R33B accommodates the CPU module directly, distinguishing it from extension base units that connect to an existing main base for additional module capacity.

At 3 slots, the R33B serves the smallest standard configuration tier in the MELSEC iQ-R base unit range — appropriate for compact machine controllers and applications where the total module count (CPU, power supply, and a small number of I/O or function modules) fits within this minimal slot count.

Key Product Information

Main Base Unit Function — Power, Data, and Physical Mounting

The R33B backplane performs three integrated functions for the modules installed on it:

Module power distribution: The backplane distributes power from the installed power supply module to every module slot — eliminating the need for individual module power wiring.

High-speed system bus: The MELSEC iQ-R backplane carries the high-speed system bus connecting the CPU to every I/O and function module — the bus architecture in the iQ-R platform is significantly faster than the legacy MELSEC platforms it succeeds, supporting the demanding scan-time requirements of modern motion control and high-speed I/O applications.

Physical module retention: The backplane provides the mechanical mounting rail and module guide structure that holds each installed module securely in position, with module retention clips and DIN rail or panel mounting points for the complete assembly.

Applications

Compact machine controllers: Small to medium machine tools, packaging equipment, and material handling systems where the control logic and I/O requirements fit within a 3-slot CPU/power supply/I/O configuration.

Distributed I/O architecture systems: Applications using the MELSEC iQ-R CPU primarily as a network master with most I/O distributed to remote stations over a network — the 3-slot R33B hosts the CPU and minimal local I/O while the bulk of I/O resides at remote locations.

Skid-mounted equipment controllers: OEM equipment skids and modular process units with self-contained control systems where panel space is limited and the application's I/O count is modest.

Pilot and test systems: Engineering test benches, prototype machine controls, and laboratory automation systems using a minimal MELSEC iQ-R configuration during development before scaling to a production system.

FAQ

Q1: What is the difference between a "main base unit" and an "extension base unit" in the MELSEC iQ-R series?

A main base unit (such as the R33B) is the backplane that directly houses the CPU module — it is the foundational rack in any MELSEC iQ-R system. An extension base unit connects to the main base unit (via an extension cable) to add further module slots when the main base unit's slot count is insufficient for the application's total module requirement. Every MELSEC iQ-R system requires exactly one main base unit; extension base units are added as needed.

Q2: Can the R33B be expanded with extension base units if more than 3 slots are eventually needed?

Yes — the MELSEC iQ-R platform supports connecting extension base units to the main base unit via the system's extension bus, increasing total module capacity beyond the main base unit's own slot count. Confirm the maximum number of extension stages and total module count supported by the specific CPU model installed in the R33B, as CPU performance class determines the maximum system configuration size.

Q3: Does the R33B include the power supply module, or is that purchased separately?

The R33B base unit itself is the backplane only — the power supply module is a separate component installed into one of the base unit's slots (or, for CPU models with an integrated power supply, this requirement may be eliminated). Confirm the power supply requirements from the specific CPU module's specifications, as some MELSEC iQ-R CPU types include integrated power supply functionality that changes the available slot allocation.

Q4: What CPU modules are compatible with the R33B base unit?

The R33B is designed for the MELSEC iQ-R series CPU module range — including the R-series process CPUs, motion CPUs, and standard programmable CPUs that share the iQ-R platform's backplane interface and system bus protocol. Confirm specific CPU model compatibility and any firmware version requirements from Mitsubishi Electric's MELSEC iQ-R system configuration documentation for the application's required CPU performance class.
